SANHA®-Press | Copper

System description

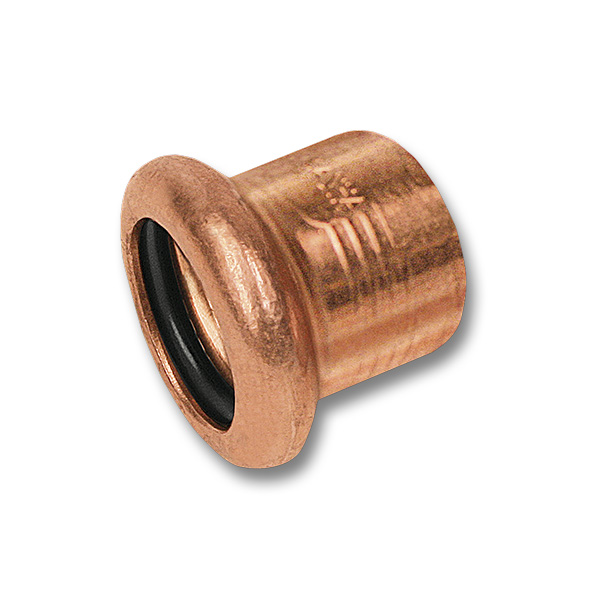

High-quality system press fittings from copper for copper pipes according to EN 1057 for drinking water and heating installations.

SANHA®-Press system fittings are well-known for outstanding quality, easy to work with and offer the right solution for a wide range of applications, be they residential, industrial or office buildings. They can be ideally combined with our unique PURAPRESS® series 8000 made of completely lead-free copper alloy silicon bronze or all standard copper pipes. They are outfitted with black moulded EPDM (=ethylene propylene dien rubber) sealing rings and conveniently sport the unique combipress® function (see below).

All system press fittings of our series 6000 are tested and certified by all relevant national and international certification bodies such as WRAS.

Material

Fittings and pipes made of copper, CU-DHP (material number CW 024 A).

Operating conditions SANHA®-Press from copper
Water and aqueous solutions and technical gases (non-toxic, non-flammable), up to 108 mm
Operating pressure	16 bar
Operating temperature with EPDM	-30 °C - +120 °C
Type of thread: Pipe thread: R/Rp thread according to EN 10226, Fastening thread: G thread according to ISO 228

Features

combipress® =

tool compatibility: pressable with press jaws and slings with original SA, V and M contour up to and including 54 mm
Leak path feature (certified forced leakage before pressing with EPDM and HNBR sealing rings) in combination with
Push & Stay function for safe, reliable installation in every position

Fast installation, no risk of fire

The connection with stainless steel pipes by cold pressing enables a fast, time-saving installation and eliminates the risk of fire during the process. SANHA®-Press installation systems are therefore ideally suited for renovation work.

High corrosion resistance

The exceptionally smooth, passivated surface of pipes and fittings leads to an excellent corrosion resistance.

Exceptional flexibility

All dimensions from 12 to 108 mm including 64 and 67 mm available
Reliable, permanent connection with copper pipes according to EN 1057
Thread according to EN 10226 and/or ISO7/1 Typ R und Rp

Areas of application

Drinking water

Heating / Cooling

Compressed air (residual oil content max. 25 mg/m3 )

Fire extinguishing systems (DIN 14462, wet)

Shipbuilding

Technical gases

More applications on demand.
