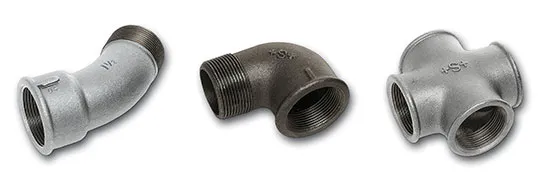

Threaded Fittings +S+ | Malleable cast iron

Tempergussfittings

Webshop

  • System description
  • Certificates

System description

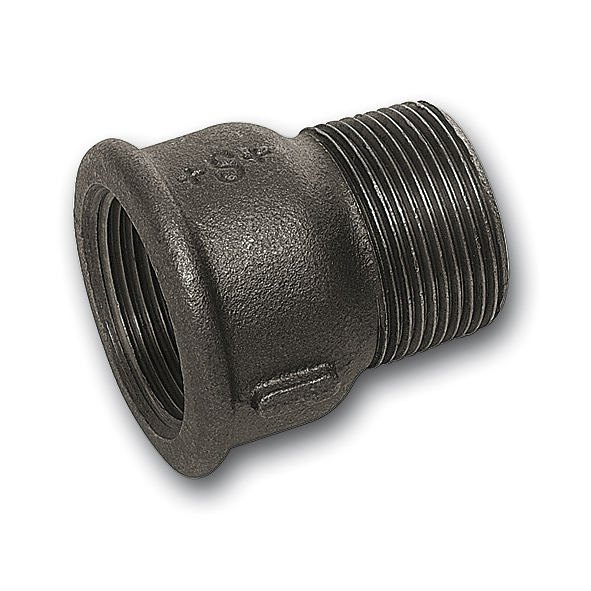

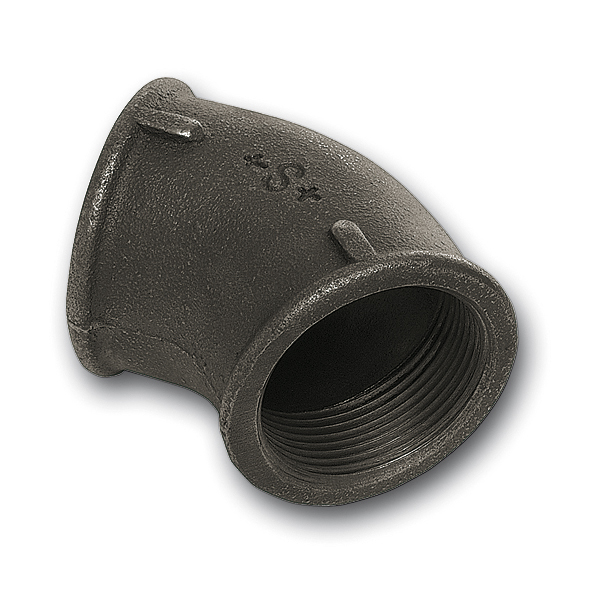

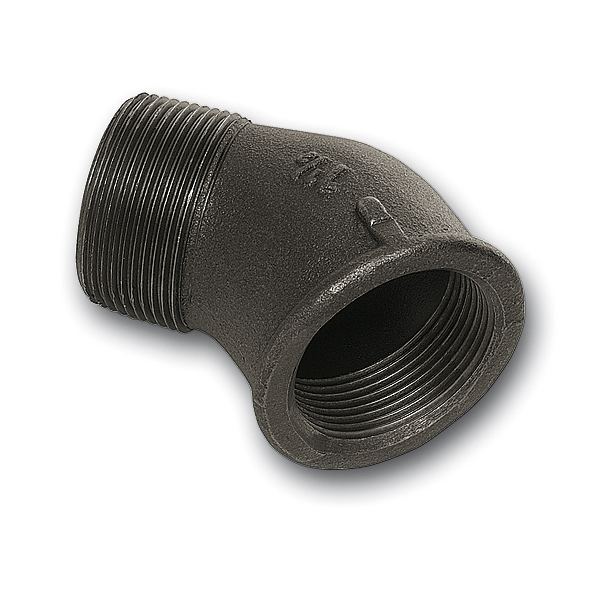

SANHA threaded fittings are manufactured from malleable cast iron EN-GJMB-350-10 according to EN 1562, the design symbol “A” and fitted with connection threads according to EN 10226 and ISO 7/1. Thanks to their high resistance to vibration and impact, these high-grade and extremely stable moulded parts in malleable cast iron can be used in the toughest conditions.

Operating conditions for SANHA®
threaded fittings in malleable cast iron

Outer pipes diameter Operating pressure
Water and aqueous solutions
1/8"…4" 25 bar from 20 °C to 120 °C
Interpolated values from 120 °C to 300 °C
20 bar to 300 °C
Flammable gases
1/8"…4" 16 bar
Pipe thread: R/Rp type thread according to EN 10226,
Fastening thread: G thread according to ISO 228

Features

Practical installation

  • SANHA threaded fittings allow for a particularly fast and easy installation, as they are produced with threads according to EN 10226 and ISO 7/1
  • Type R and Rp and offer user-friendly wrench flats.

Excellent material & properties

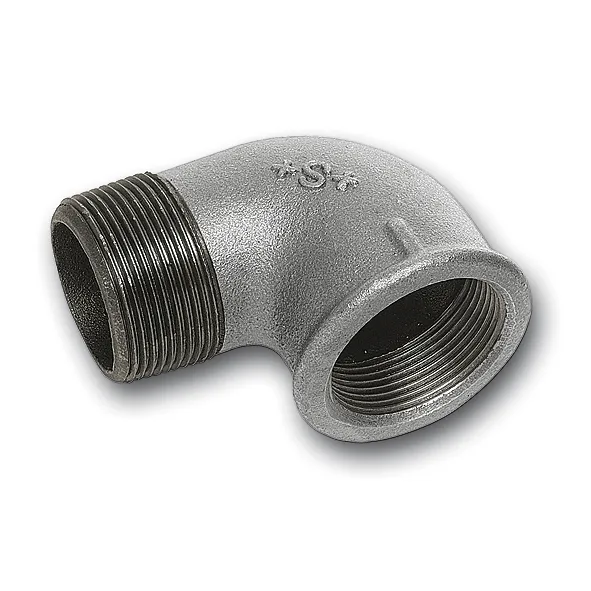

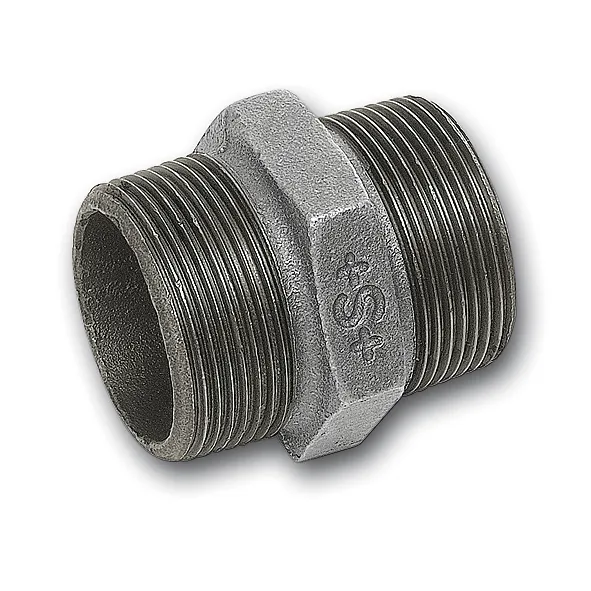

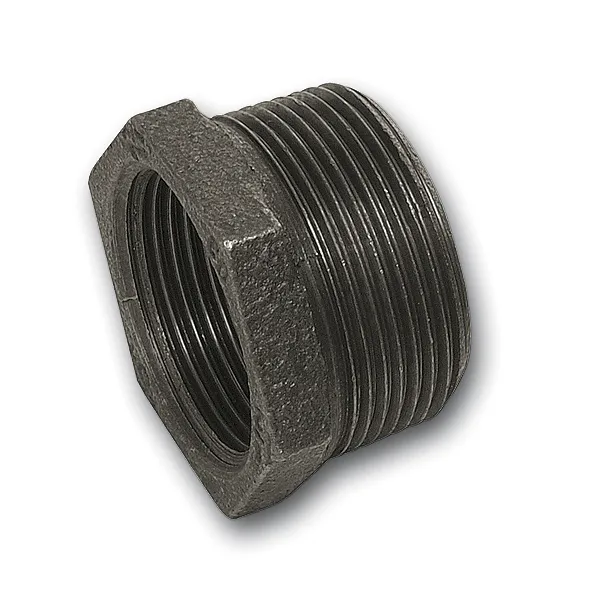

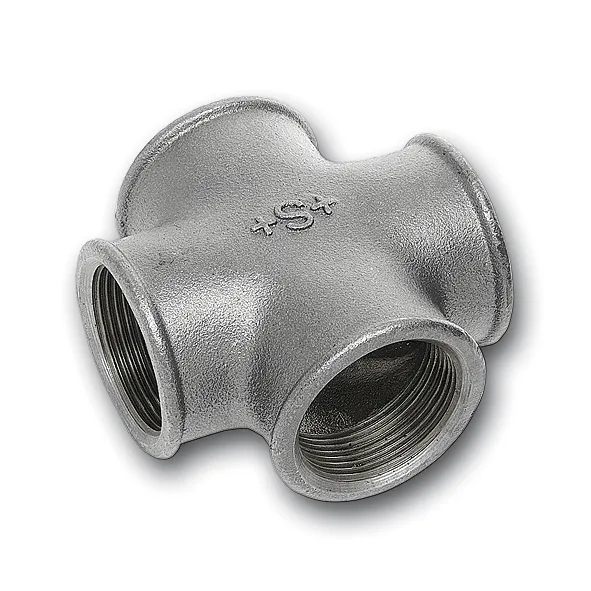

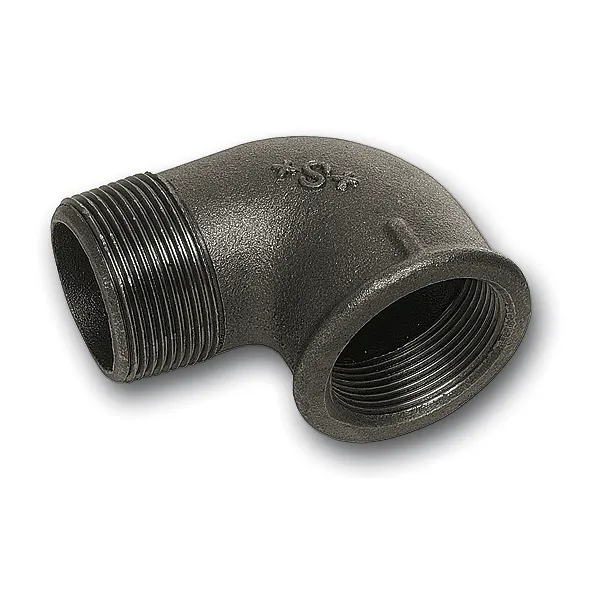

  • Galvanised and black malleable cast iron available
  • Fittings manufactured according to design symbol A
  • Surface protection against corrosion by galvanization
  • Great protection against vandalism thanks to the strength of the material
  • Comprehensive portfolio from 1/8” to 4”

Areas of application

Drinking water (restricted)
Heating
Gas
Cooling water
Rainwater
Solar
Compressed air
Fire extinguishing
Sprinkler systems
Inert gases

More applications on demand.

Certificates

Country Certifier Download
+S+ | PZH (POL)
+S+ | GOST (RUS)
+S+ | Hygiene (UKR)
