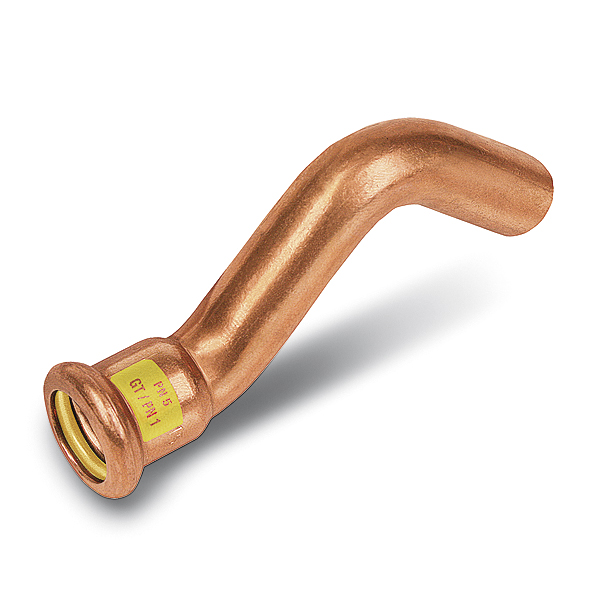

SANHA®-Press Gas (series 10000/11000) | Copper

Kupferfittings für Gas
Downloads Webshop
  • System description
  • Certificates
  • Show cases

System description

System press fittings from copper and copper alloys for copper pipes according to EN 1057 for flammable gases and interior gas piping with yellow sealing rings made from HNBR (hydrated nitrile butadiene rubber).

SANHA®-Press Gas system fittings are tested according to BS EN 8537 and certified or approved by all relevant national and international certification bodies. Our system fittings are labelled with a yellow „PN 5 - GT/PN 1“ on the outside.

Operating pressure SANHA®-Press Gas from copper and copper alloys

Outer pipe diameter Operating pressure
Flammable gases
d ≤ 54 mm 5 bar
Operating temperature
SANHA®-Press
with yellow HNBR sealing ring
-20 °C - +70 °C

Type of thread: Pipe thread: R/Rp thread according to EN 10226,
Fastening thread: G thread according to ISO 228

Features

combipress =

+ tool compatibility: pressable with press jaws and slings with original SA, V and M contour up to and including 54 mm
+ Leak path feature (certified forced leakage before pressing with EPDM and HNBR sealing rings) in combination with
+ Push & Stay function for safe, reliable installation in every position


Fast installation, no risk of fire

The connection with stainless steel pipes by cold pressing enables a fast, time-saving installation and eliminates the risk of fire during the process. SANHA®-Press installation systems are therefore ideally suited for renovation work.


High corrosion resistance

The exceptionally smooth, passivated surface of pipes and fittings leads to an excellent corrosion resistance.


Exceptional flexibility

  • All dimensions from 12 to 54 mm
  • Reliable, permanent connection with copper pipes according to EN 1057
  • Thread according to EN 10226 and/or ISO7/1 Typ R und Rp

Areas of application

Natural gas, liquid gas (up to PN 5)

More applications on demand.

Certificates

Country Certifier Download
SANHA®-Press Gas | ÖVGW (AUT)
SANHA®-Press Gas KVBG (BEL)
SANHA®-Press Gas | SVGW (SUI)
SANHA®-Press Gas | SZU (CZE)
SANHA®-Press + SANHA®-Press Gas + SANHA®-Press Solar + PURAPRESS® | DNV GL (global)
SANHA®-Press Gas | DVGW (GER, English version)
SANHA®-Press Gas | DVGW (GER)
Allgemeines Bauaufsichtliches Prüfzeugnis
SANHA®-Press Gas | TÜV (GER)
Gütezeichen System Kupferrohr
SANHA®-Press Gas | DGP (DEN)
SANHA®-Press Gas | Certigaz (FRA)
SANHA®-Press Gas | Kitemark (UK)
SANHA®-Press Gas | EMI-NME (HUN)
SANHA®-Press Gas | GASTEC (NED)
SANHA®-Press Gas for Hydrogen | KIWA (NED)
SANHA®-Press Gas | INIG (POL)
Copper / Медь / медные сплавы ГОСТ Р
SANHA®-Press Gas | Hygiene (RUS)
SANHA®-Press Gas | RMROS (RUS)
SANHA®-Press Gas | TSU (SVK)
SANHA®-Press Gas | UA (UKR)
