PURAPRESS® (series 8000) | Silicon bronze CuSi

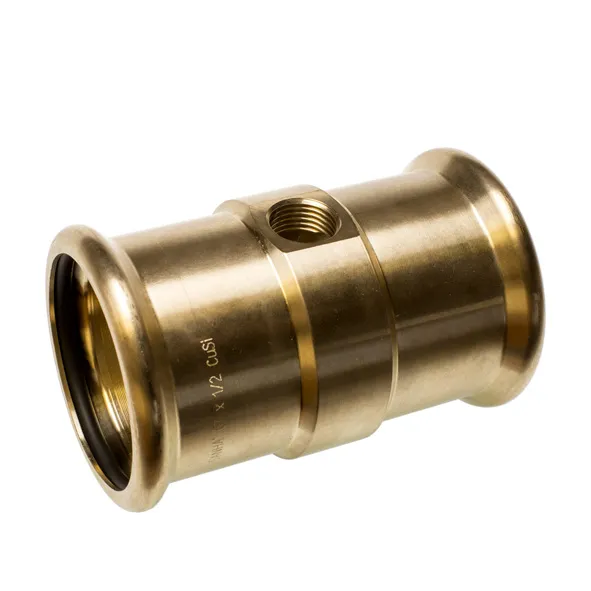

PURAPRESS® are unique modern premium transition press fittings for copper and stainless steel pipes made from completely lead-free silicon bronze CuSi. They are tested and approved for reliable connections with copper pipes according to EN 1057 and NiroSan® stainless steel system tubes and certified by all relevant national and international certification bodies.
Press fittings of the PURAPRESS series are, just like our capillary fittings of the series PURAFIT, manufactured from the completely lead-free premium material silicon bronze CuSi and therefore an excellent solution for non-lead contaminated drinking water installations. In this way, installers can always be certain that their installation does not contain lead and that they will not be subject to any legal claims should the strict lead tolerances in drinking water installations ever be exceeded. By providing this lead-free alternative to conventional materials, SANHA also satisfies the market demand for safe and healthy drinking water installations.
In combination with our tried and trusted NiroSan® stainless steel system pipes, PURAPRESS® premium fittings combine the well-known positive properties of corrosion resistant copper and stainless steel in terms of hygiene, corrosion resistance, long service life and sustainability while at the same time offering a extremely attractive economical solution.
Our system press fittings PURAPRESS® have been awarded the highly-coveted Plus X Award for functionality and high quality by a jury of renowned experts.
Operating conditions for PURAPRESS® from lead-free silicon bronze for copper and NiroSan® stainless steel system pipes
|Outer pipe diameter||Operating pressure|
|Water and aqueous solutions|
|d ≤ 108 mm||16 bar|
|Technical gases (non-toxic, non-flammable)|
|d ≤ 108 mm||16 bar|
with EPDM sealing ring
|-30 °C - +120 °C|
Type of thread: Pipe thread: R/Rp thread according to EN 10226,
+ tool compatibility: pressable with press jaws and slings with original SA, V and M contour up to and including 54 mm
+ Leak path feature (certified forced leakage before pressing with EPDM and HNBR sealing rings) in combination with
+ Push & Stay function for safe, reliable installation in every position
Lead-free silicon bronze CuSi
The use of this exceptional, specially adapted material completely avoids any lead contamination of drinking water through the installation itself. Installers can therefore be certain when it comes to the strict regulations of the Drinking Water Directive regarding lead.
Fast installation, no risk of fire
The connection with stainless steel pipes by cold pressing enables a fast, time-saving installation and eliminates the risk of fire during the process. PURAPRESS® installation systems are therefore ideally suited for renovation work.
Hygienic premium solution, high corrosion resistance
Our premium material silicon bronze CuSi is exceptionally resistant against dezincification and free of tension-crack corrosion - equivalent to red brass. The smooth, passivated surface and dezincification resistance make PURAPRESS® an excellent solution in terms of hygiene since bio-films and particles are considerably less likely to adhere to the inner surface.
- All dimensions from 12 to 108 mm including 64 and 67 mm available

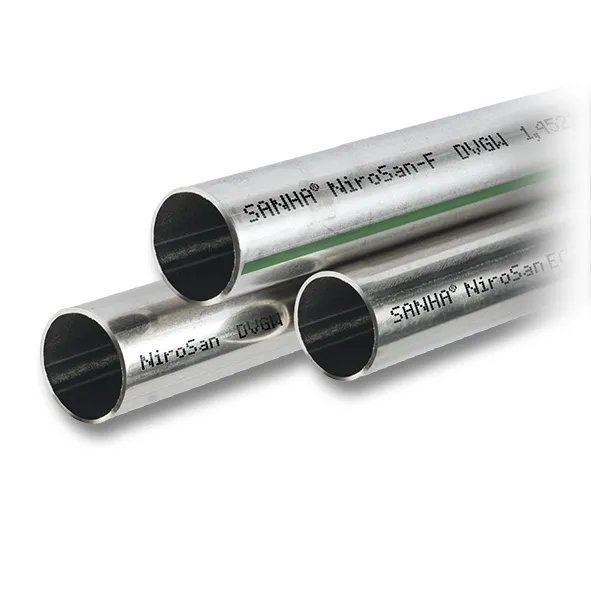

- Reliable, permanent connection with NiroSan® stainless steel system pipes:
- NiroSan® (1.4404/316L), TIG-welded, annealed, low carbon, high (≥ 2,3 %) molybdenum content for increased corrosion resistance. Labelled in black lettering
- NiroSan® ECO (1.4404/316L), optimized wall thickness, TIG-welded, annealed, low carbon, high ( ≥ 2,3 %) molybdenum content for increased corrosion resistance
- NiroSan®-F (1.4521/444), TIG-welded, pickled for improved corrosion resistance, nickle-free
- copper pipes according to EN 1057
- Thread according to EN 10226 and/or ISO7/1 Typ R und Rp
Areas of application
More applications on demand.
|Kloster Salzburg||3fit®-Press | Silicon bronze CuSi, PURAPRESS® | Silicon bronze CuSi, Threaded fittings from malleable cast iron, SANHA®-Therm | Carbon steel|
|Neubau Fa. Blau||3fit®-Press | Silicon bronze CuSi, PURAPRESS® | Silicon bronze CuSi, SANHA®-Therm | Carbon steel, NiroSan® | Stainless steel, SANHA®-Press | Copper, NiroSan® Gas | Stainless steel, Heating circuit manifold|
|Porta Anderlecht, Anderlecht||PURAPRESS® | Silicon bronze CuSi, SANHA®-Press | Copper|
|Shell, Gent||PURAPRESS® | Silicon bronze CuSi, SANHA®-Press | Copper|
|Alter Güterbahnhof, Freiburg||3fit®-Press | Silicon bronze CuSi, PURAPRESS® | Silicon bronze CuSi, SANHA®-Therm | Carbon steel, NiroSan® | Stainless steel, SANHA®-Press | Copper, NiroTherm® | Stainless steel, NiroSan® Gas | Stainless steel, Heating circuit manifold|
|Feuerwache Frechen||PURAPRESS® | Silicon bronze CuSi, SANHA®-Therm | Carbon steel, NiroSan® | Stainless steel, SANHA®-Press | Copper, NiroTherm® | Stainless steel|
|Johannes Gutenberg Universität, Mainz||PURAPRESS® | Silicon bronze CuSi, NiroSan® | Stainless steel, NiroTherm® | Stainless steel|
|Hotel 120 rooms, Santander||PURAPRESS® | Silicon bronze CuSi, SANHA®-Press | Copper|
|America's Cup HQ, Portsmouth||PURAPRESS® | Silicon bronze CuSi, SANHA®-Press | Copper, SANHA®-Press Gas | Copper, SANHA®-Press Chrome | Copper|
|ProMessa, Deventer||PURAPRESS® | Silicon bronze CuSi, SANHA®-Press | Copper, NiroTherm® | Stainless steel,|
|Cedrób Skarżynek, Skarżynek k/ Ostrółęki||PURAPRESS® | Silicon bronze CuSi, SANHA®-Therm | Carbon steel|
