Solder fittings "SA" 5000

Products

20 Products

5041

Bend 45° Copper

View Product

5002A

Bend 90° Copper

View Product

5001A

Bend 90° IA Copper

View Product

5002G

Bent Tap Connector Copper

View Product

5090

Elbow 90° Copper

View Product

5301

End Cap Copper

View Product

5243

Fitting Reducer Copper

View Product

5085

Full Crossover CxC Copper

View Product

5086

Part Crossover Copper

View Product

5240

Reducing coupling Copper

View Product

5060

Return Bend 180° Copper

View Product

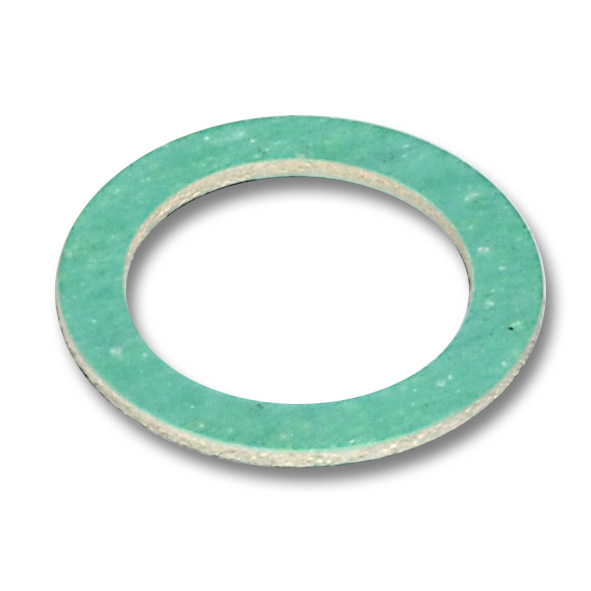

DCU

Sealing

View Product

5270S

Slip Coupling Copper

View Product

WBS H

Slip-on collar for brazing

View Product

5359G

straight connector C x C

View Product

5270

Straight Coupling Copper

View Product

5240G

Straight Tap Connector Copper

View Product

5040

Street Elbow 45° IA Copper

View Product

5092

Street Elbow 90° Copper

View Product

5130

Tee Copper

View Product

System description

The SANHA® series 4000 and 5000 "SA" consist of solder and transition fittings for copper pipes according to EN 1057 and EN 13348 for hard and soft soldering. All products are certified according to many national and international certification bodies.

SANHA® capillary solder fittings are manufactured from copper (Cu-DHP, CW024A for moulded parts) and copper alloys CC499K (threaded parts, cast parts) and fulfill all requirements of BS EN 1254.

Maximum permissible operating pressures for copper pipes with SANHA® capillary solder fittings
Operating temperature	Outer pipe diameter
	6...28 mm	35...54 mm	64...108 mm
+30 °C	45 bar	25 bar	16 bar
+65 °C	25 bar	16 bar	16 bar
+110 °C	16 bar	10 bar	10 bar

Please contact our Technical Support at technik@sanha.com for operating conditions not listed in the above table.

Features

Fast and reliable installation thanks to the sealing feature in the thread and narrow manufacturing tolerances. The thread conforms with EN 10226 and ISO7/1 Type R and Rp
Optimum corrosion resistance due to the comparatively low carbon content of <0,5 mg C / dm²
Extensive portfolio: SANHA offers all dimensions from 6 to 159 mm

Areas of application

Drinking water

Gas installations

Inert gases

Fire extinguishing system (wet)

Heating

Rainwater

Cooling water

Sprinkler systems (wet)

Medical gases

Solar systems

Compressed air

More applications on demand.

Certificates

Country	Certifier	Download
		SA 4000 + 5000 \| SZU (CZE)
		SA 5000 \| AFNOR (FRA)
		SA 5000 \| DVGW (GER)
		SA 5000 \| RAL (GER)
		Serie 4000 + 5000 \| EMI-NME (HUN)
		SA 5000 \| TIFQ (ITA)
		SA 5000 \| KIWA (NED, English version)
		SA 4000 + 5000 \| PZH (POL)
		SANHA®-Press + SANHA®-Press Solar + SA 5000 \| PZH (POL)
		SA Serie 4000 + 5000 \| RMROS (RUS)
		SA Serie 4000 + 5000 \| TSU (SVK)
		SA Serie 4000 + 5000 \| SVGW (SUI)
		SA Serie 4000 + 5000 \| UA (UKR)
		Serie 4000/5000 + SANHA®-Press + 3fit®-Push + SANHA®-Therm \| UC (UKR)
		SA series 4000 + 5000 \| Kitemark (UK)

Show cases

Country	Reference	Product
	BT Rangers & Government, Northern Territory	Solder fittings "SA" 5000 \| Copper, Solder fittings "SA" 5000, SANHA®-Therm Industry \| Carbon steel
	Port Keats Wadeye Power Station, Northern Territory	Solder fittings "SA" 5000 \| Copper, Solder fittings "SA" 5000, NiroSan® Gas \| Stainless steel, NiroSan® Industry \| Stainless steel
	PowerWater, Ramingining, Northern Territory	Solder fittings "SA" 4000 \| Copper, Solder fittings "SA" 5000, SANHA-Press® Solar \| Copper, Welding fittings "SA", NiroSan® \| Stainless steel
	AZ Dalta, Rumbeke	Solder fittings "SA" 5000 \| Copper, Solder fittings "SA" 4000 \| Copper, Solder fittings "SA" 5000
	AZ Groeninge, Kortrijk	Solder fittings "SA" 5000 \| Copper, Solder fittings "SA" 4000 \| Copper, Solder fittings "SA" 5000
	AZ Sint, Nicolaas	Solder fittings "SA" 5000 \| Copper, Solder fittings "SA" 4000 \| Copper, Solder fittings "SA" 5000
	Hopital Epicura, Ath	Solder fittings "SA" 4000 \| Copper, Solder fittings "SA" 5000
	Koningin Fabiola, Huderf	Solder fittings "SA" 4000 \| Copper, Solder fittings "SA" 5000
	Mont Legia, Luik	Solder fittings "SA" 5000 \| Copper, Solder fittings "SA" 4000 \| Copper, Solder fittings "SA" 5000
	Rijnstate Ziekenhuis, Arnhem	Solder fittings "SA" 5000 \| Copper, Solder fittings "SA" 4000 \| Copper, Solder fittings "SA" 5000
	Sint Andries, Tielt	Solder fittings "SA" 5000 \| Copper, Solder fittings "SA" 4000 \| Copper, Solder fittings "SA" 5000
	St. Jan, Brugge	Solder fittings "SA" 5000 \| Copper, Solder fittings "SA" 4000 \| Copper, Solder fittings "SA" 5000
	MT Medizin und Technik GmbH, Oschatz	Solder fittings "SA" 5000 \| Copper, Solder fittings "SA" 4000 \| Copper, Solder fittings "SA" 5000
